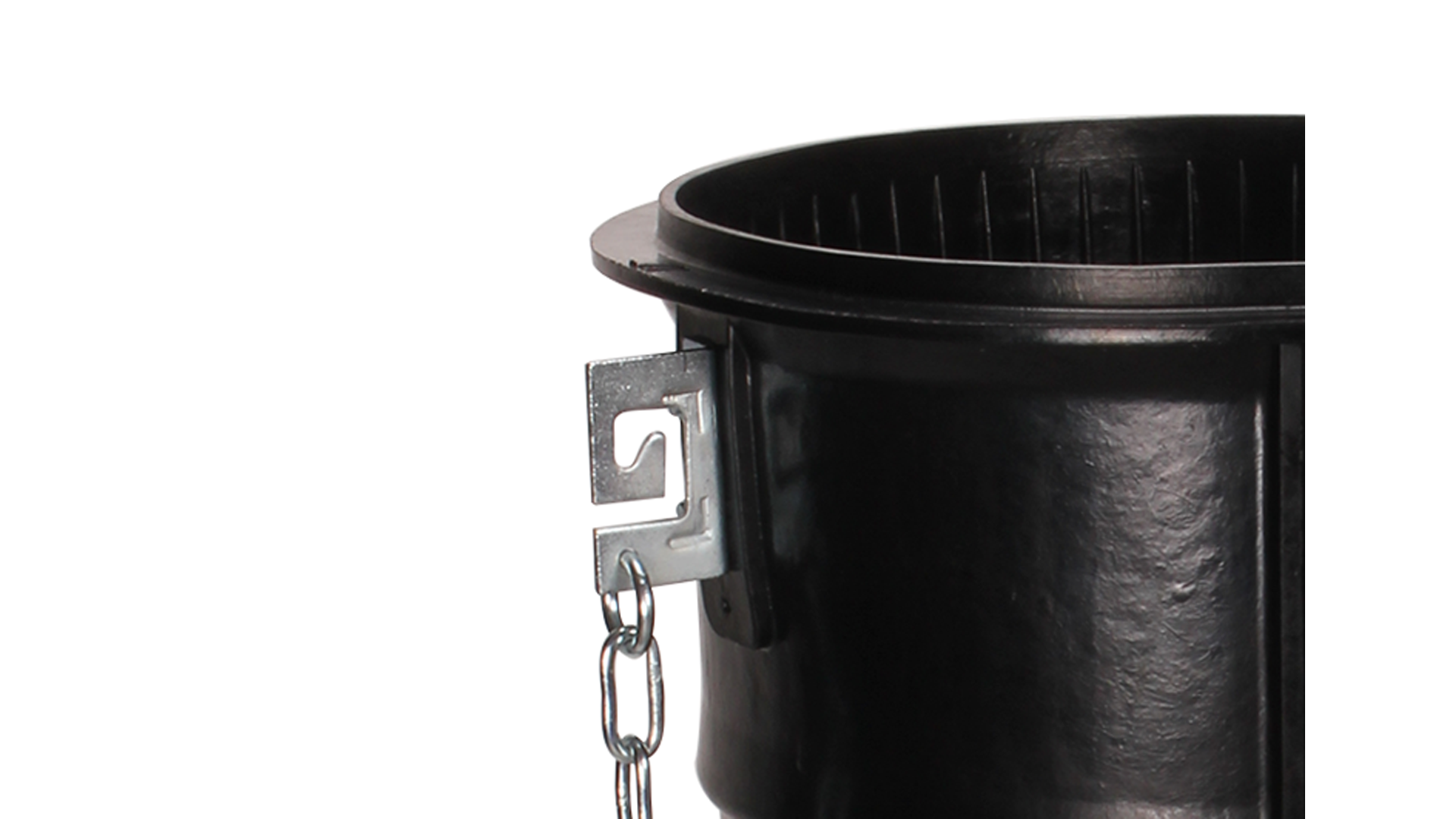

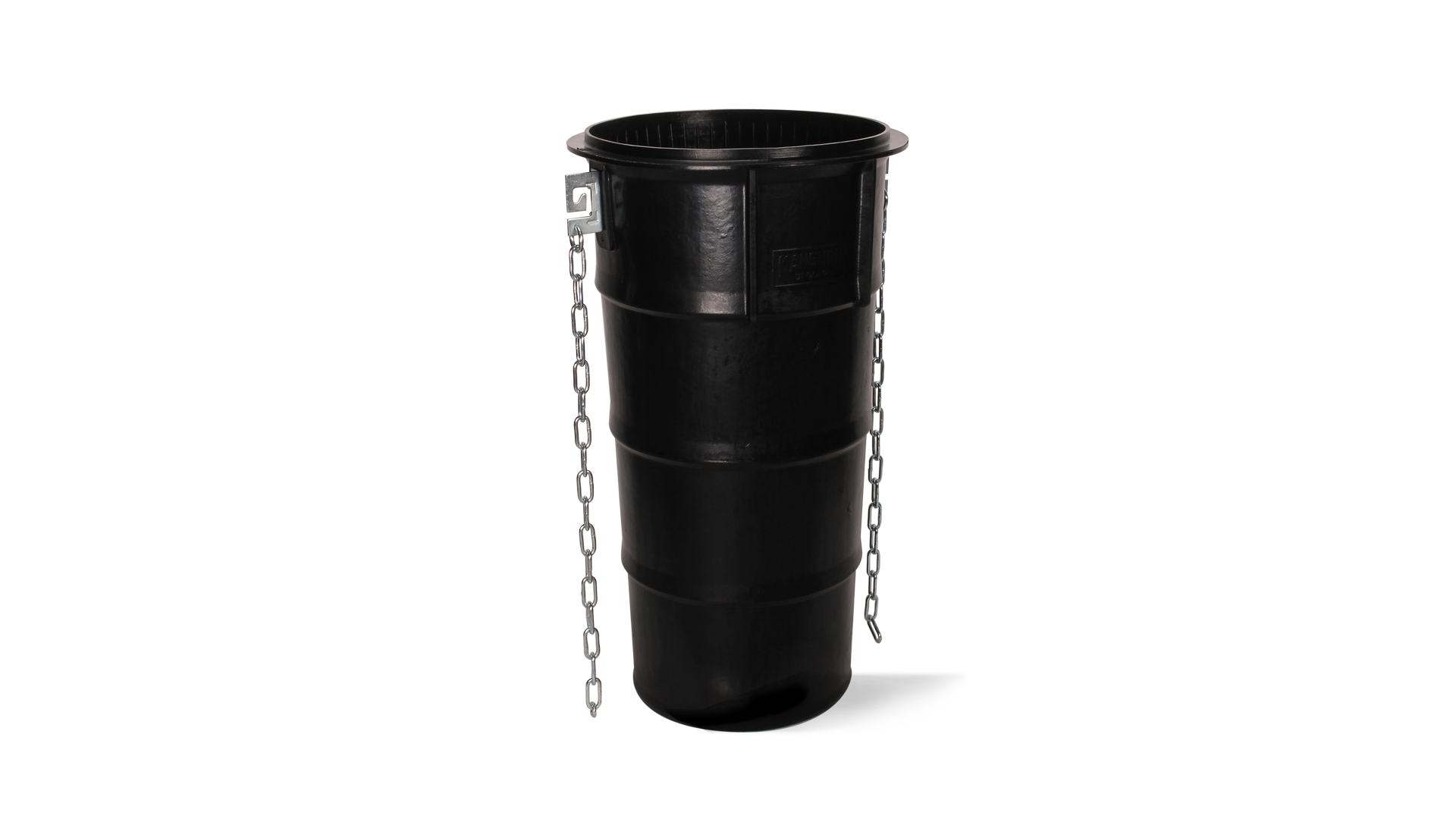

RUBCHUTE straight section rubber chute

Made of vulcanized rubber.
100% recycled materials.
To move rubble and other site waste from higher storeys to containers at street level.

FUNCTIONAL CHARACTERISTICS.
Attaches to metal hopper and side-entry sections and to all chute accessories.
Optimal performance at low temperatures: HIGHLY RESISTANCE to -60°C.
BUILT-IN Nylon reinforcement for a greater hardness and durability.
EXCELLENT resistance to impact by deformation. Higher DURABILITY.
VERY THICK walls for maximum strength and resistance with ribbed interior that PROTECTS against wear and tear.
Restricts the falling speed of rubble.
Reduces dust and till 40% of noise level.
Equipped with extra-reinforced 7 mm thick chains, according to DIN 763 norm.
FAST and EASY assembly. Equipped with quick-clip system.
Stackable for SAVING space.
100% REYCLABLE.

TECHNICAL SPECIFICATIONS.

– Height: 110 cm.
– Top’s diameter: Ø510 mm.
– Bottom’s diameter: Ø380 mm.
– Effective length: 100 cm. (for each section).
– Weight: 14.87 kg.
– Colour: Black.

PACKAGING NORM

Sales unit: 3 units (stacked in column).
Column dimensions: 178x68x68 cm.
Column weight: 44.61 kg.

NORM

Free of SVHC (Substances of Very High Concern).
