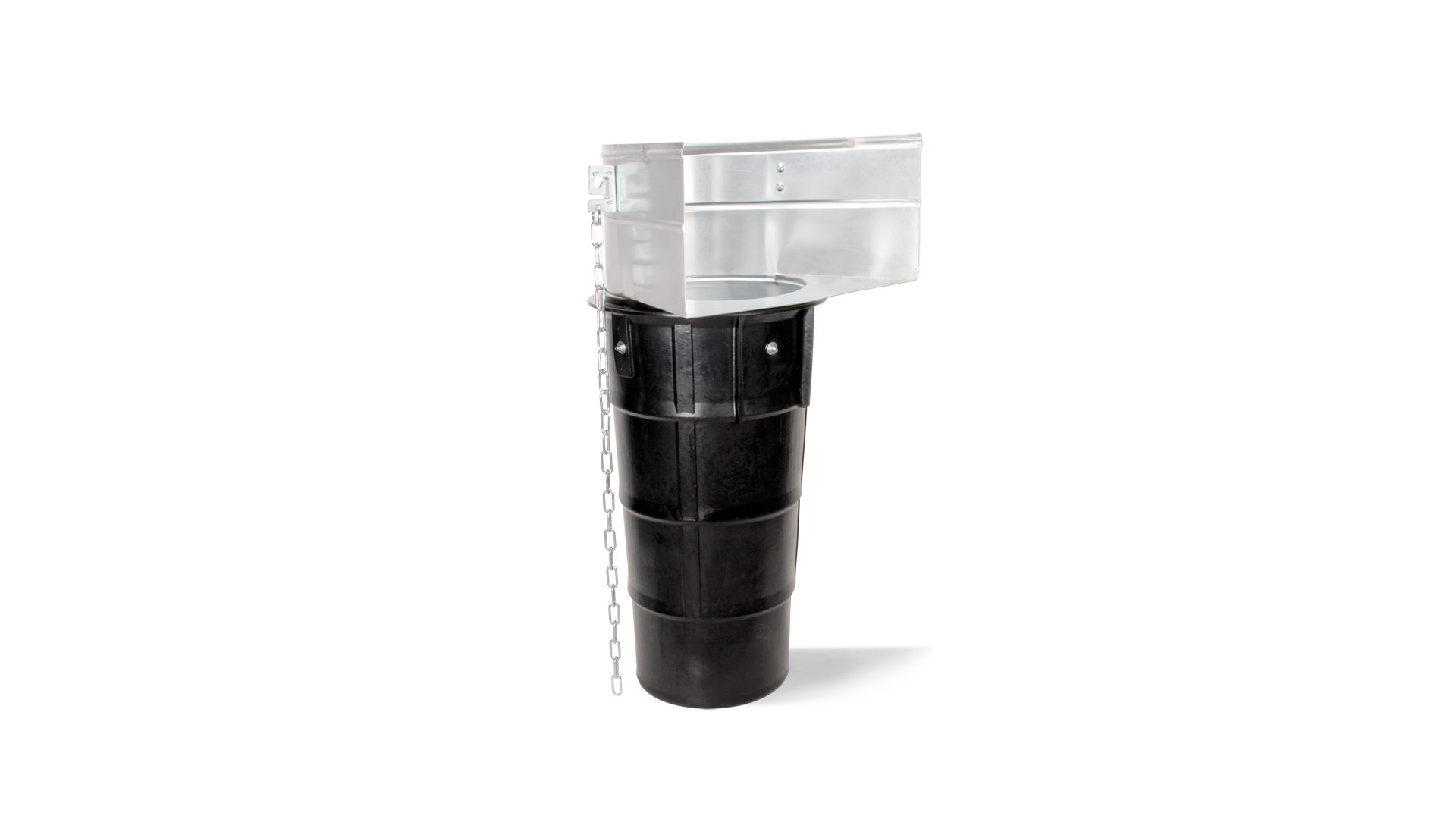

RUBCHUTE rubber chute with top metal hopper

Made of vulcanized rubber.
100% recycled materials.
To move rubble and other site waste from higher storeys to containers at street level.

FUNCTIONAL CHARACTERISTICS.

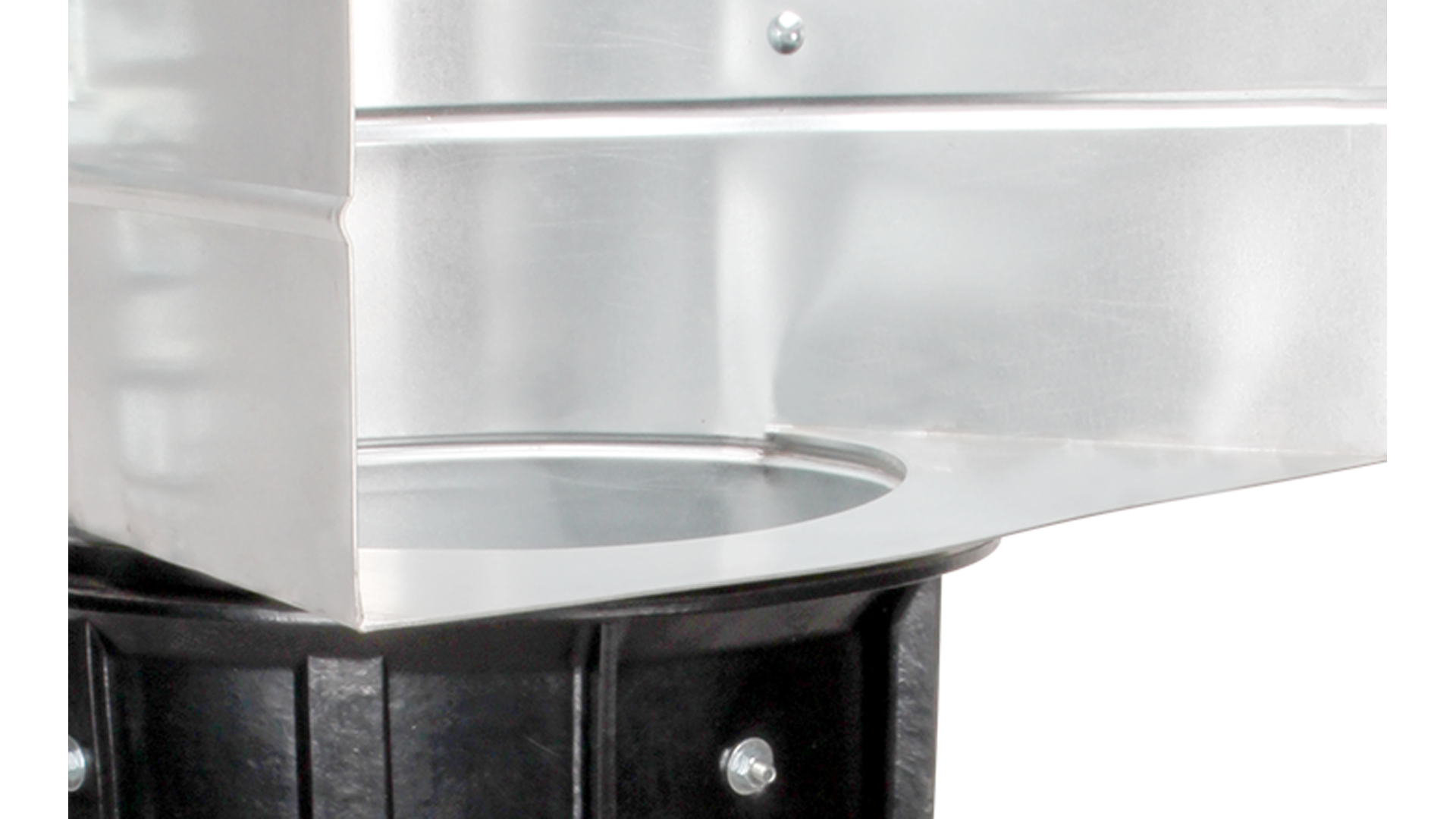

FIRST segment of the chute, with metal top hopper. Designed for loading waste from a WHEELBARROW or SHOVEL.
Optimal performance at low temperatures: HIGHLY RESISTANCE to -60°C.
BUILT-IN Nylon reinforcement for a greater hardness and durability.
EXCELLENT resistance to impact by deformation. Higher DURABILITY.
VERY THICK walls for maximum strength and resistance with ribbed interior that PROTECTS against wear and tear.
Restricts the falling speed of rubble.
Reduces dust and till 40% of noise level.
Equipped with extra-reinforced 7 mm thick chains, according to DIN 763 norm.
FAST and EASY assembly. Equipped with quick-clip system.
Stackable for SAVING space. 100% REYCLABLE.

TECHNICAL SPECIFICATIONS.

– Height: 150 cm.
– Top’s diameter: Ø510 mm. (wide of the metal hopper is 750 mm).
– Bottom’s diameter: Ø380 mm.
– Effective length: 140 cm. (including metal hopper).
– Weight: 24.47 kg.
– Colour: Black.

PACKAGING NORM

Sales unit: 1 unit.
Dimensions: 150x63x75.5 cm.

NORM

Free of SVHC (Substances of Very High Concern).
