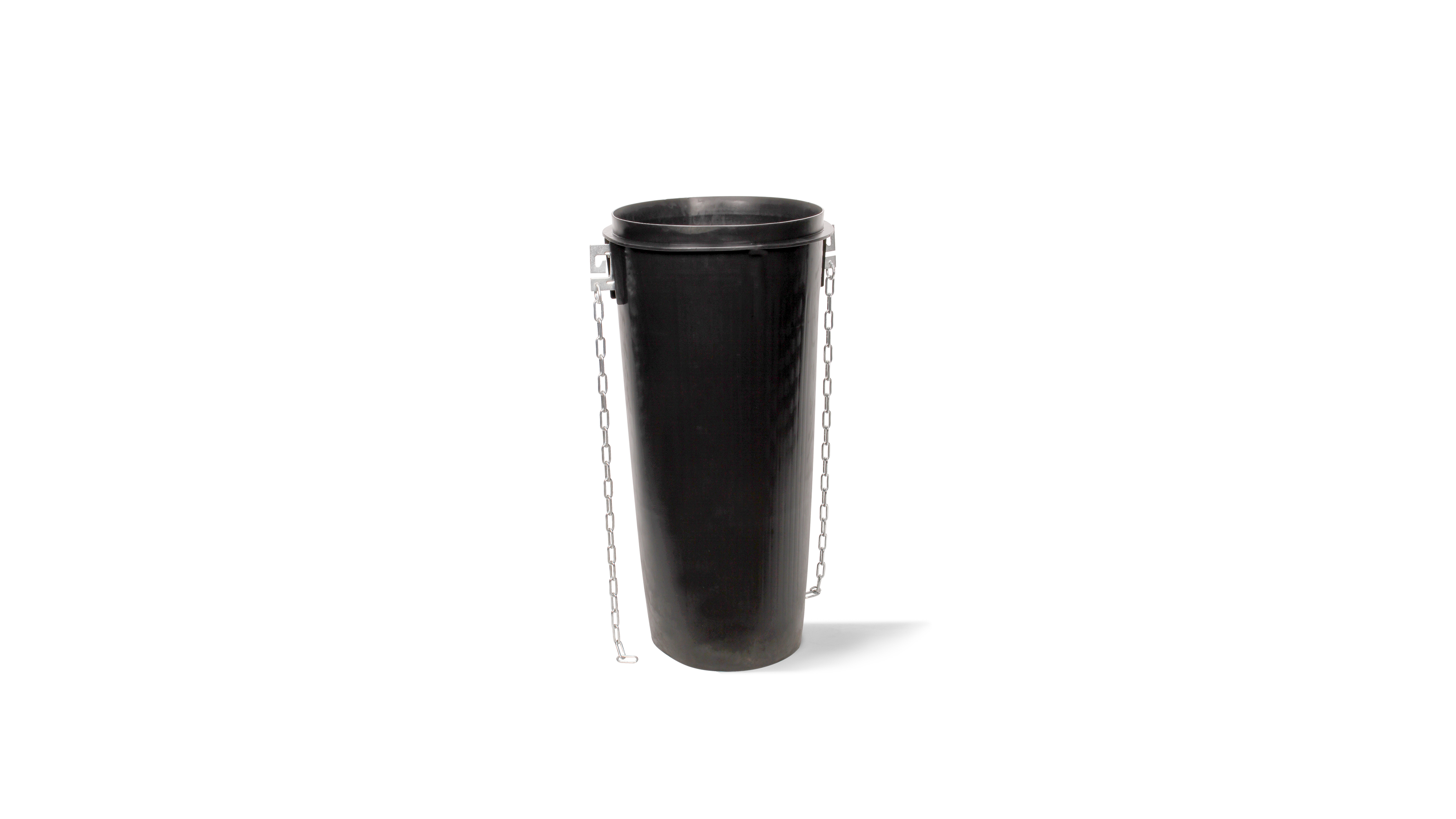

Rubitech Polymer Chute Straight Section

Made of a mixture of POLYMERS specially studied to optimize at maximum the properties of the impact resistance.
To move rubble and other site waste from higher storeys to containers at street level.

FUNCTIONAL CHARACTERISTICS.

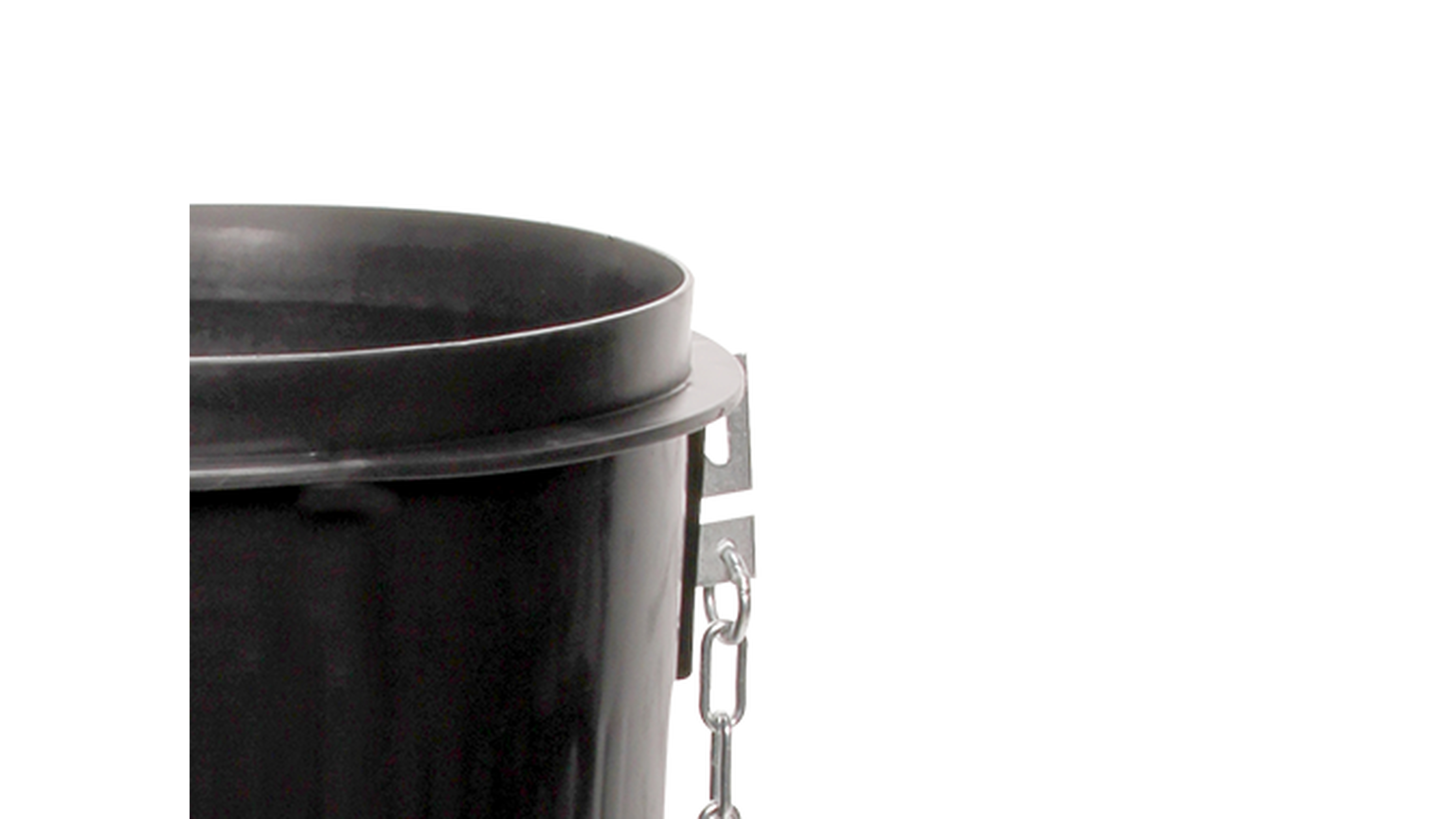

Attaches to plastic hopper section and to all chute accessories.
EXCELLENT resistance to impact.
Higher DURABILITY.
6 mm. THICK walls with ribbed interior that PROTECTS against wear and tear.
Reduces dust.
Equipped with 6 mm thick chains, according to DIN 763 norm.
FAST and EASY assembly. Equipped with quick-clip system.
Stackable for SAVING space.

TECHNICAL SPECIFICATIONS.

– Height: 110 cm.
– Top’s diameter: Ø470 mm.
– Bottom’s diameter: Ø380 mm.
– Effective length: 100 cm. (for each section).
– Weight: 8.4 kg.
– Colour: Black.
The final product meet the following minimum requirements:
– Hardness before ageing: 50 shore D (UNE EN ISO 868)
– Hardness after ageing (72h at 70°C): 51 shore D (UNE EN ISO 868
– Tensile strength before ageing: 13.3 Mpa (UNE EN ISO 527-2)
– Tensile strength after ageing (72h a 70°C): 13.5 Mpa (UNE EN ISO 527-2)
– Elongation to breakage before ageing: 420% (UNE EN ISO 527-2)
– Elongation to breakage after ageing (72h a 70°C): 440% (UNE EN ISO 527-2)
– Impact strength at environment T (23°C): 39 KJ/m2 (UNE EN ISO 180)
– Impact strength 20at -°C: 8.9 KJ/m2 (UNE EN ISO 180)
– Mass loss by abrasion (Taber test): 0,0244 Gr. (UNE EN ISO 5470-1)

PACKAGING NORM

Sales unit: 5 units (stacked in column).
Column dimensions: 246x64x64 cm.
Column weight: 42 kg.

NORM

Free of SVHC (Substances of Very High Concern).
